Archiving EEG Data to Azure

What this page tells you

Archive HUP EEG data to Azure: copy config logs to /ieeg_metadata, run zip_dataset.sh in a screen on cnt1, verify the zip log, move tarball to ready_for_archiving, upload with upload_azcli.sh, verify in portal.azure.com (cntlitt), then delete local copies.

The following instructions are to archive iEEG raw data (original Natus recordings) to Azure cold storage under Brian Litt's account (or any kind of data). Once the data is archived, it can be deleted from cnt-fs / cnt1 .

Prerequisites:

  • You will need to have access to the cntlitt storage account in Microsoft Azure. Access is granted by PMACS.
  • The upload_azcli.sh script in /project/eeg_process/azure_archive/scripts will need to have a non-expired SAS token (provided by PMACS). At the time of writing, the current token expires on 03/15/2026.

When a HUP EEG dataset is ready to be archived:

  1. Copy the HUPXXX config logs into the /ieeg_metadata folder on cnt-fs
    1. E.g. channel mapping text file, NatusDir file, data collection file, jacksheet PDF, etc.
  2. SSH into cnt1 . Open a new Linux screen for HUPXXX
    1. screen -S HUPXXX
  3. Go to /project/eeg_process/azure_archive/scripts
  4. Run bash zip_dataset.sh /mnt/cnt-fs/eeg_raw/ieeg_raw/HUPXXX
    1. This will take a long time to run. Detach from the Linux screen by clicking Ctrl A + D. You can check if it's done by reattaching (screen -r HUPXXX)
    2. Optional: If it is urgent to free up space in cnt-fs , run this command first to first move the HUP dataset out of cnt-fs and into cnt1 :
      rsync -ah --stats /mnt/cnt-fs/eeg_raw/ieeg_raw/HUPXXX /project/eeg_process/azure_archive/staging/
      Then, you will run this command:
      bash zip_dataset.sh /project/eeg_process/azure_archive/staging/HUPXXX
  5. Once the zip dataset process has finished, check the log file /project/eeg_process/azure_archive/logs_zip/zip_log_HUPXXX.txt that 1) the number of files/folders and 2) the total size between original dataset and compressed tarball are matching
    1. Once confirmed, delete the HUPXXX dataset from cnt-fs
  6. Move the HUPXXX tarball (zipped file) HUPXXX.tar.gz into the /project/eeg_process/azure_archive/ready_for_archiving folder
  7. Make sure you are in the HUPXXX Linux Screen for this next step. (If you have detached yourself from it, you can reattach using screen -r HUPXXX). Make sure you're in the /project/eeg_process/azure_archive/scripts folder.

Then, run the following code to start uploading the tarball to Azure:

nohup bash upload_azcli.sh HUPXXX.tar.gz &> /project/eeg_process/azure_archive/logs_azure/HUPXXX_azure_archive.log

  1. This will take a long time to run. Detach from the Linux screen by clicking Ctrl A + D. You can check if it's done by reattaching (screen -r HUPXXX)

  2. Check the log file /project/eeg_process/azure_archive/logs_azure/HUPXXX_azure_archive.log for progress on uploading the tarball to Azure. Check the log that the upload is finished, and check that the size of the remote tarball file matches the size of the local tarball file

  3. Login to http://portal.azure.com to verify that the tarball has been uploaded to Brian Litt's account

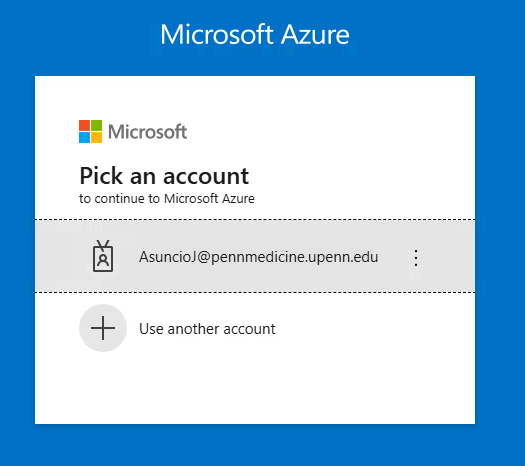

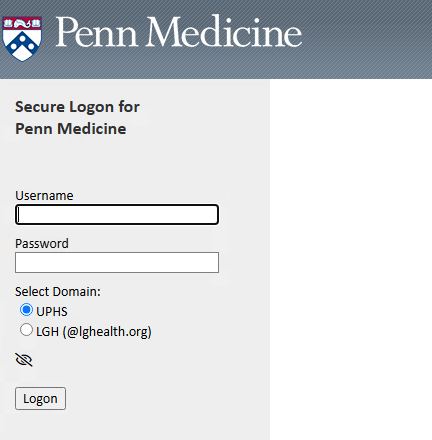

    1. Login using your PennMedicine (UPHS) email account
      Microsoft Azure 'Pick an account' with staff emailPenn Medicine secure logon form, empty username and password fields

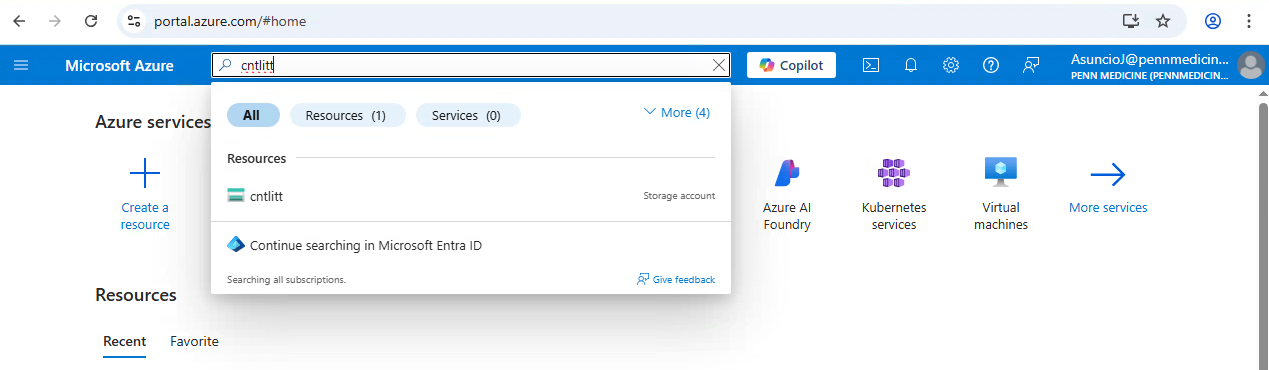

    2. Search for the "cntlitt" storage account
      Azure portal search for cntlitt storage account

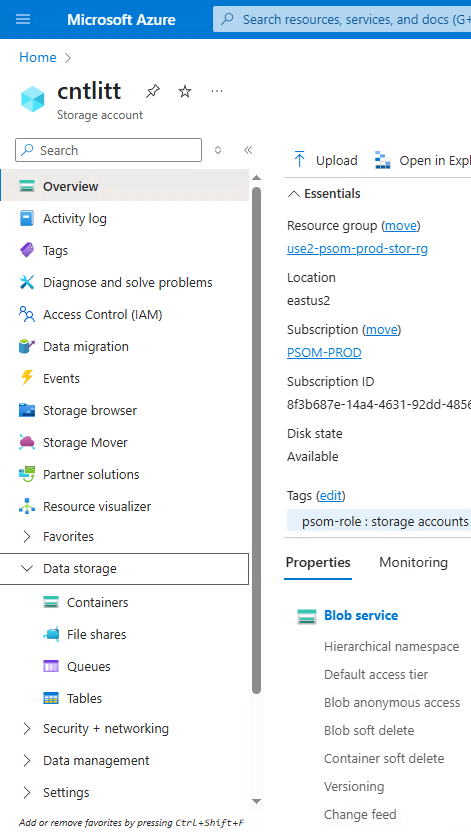

    3. Go to Data Storage, then go to Containers
      Azure storage account cntlitt overview; partial subscription ID visible

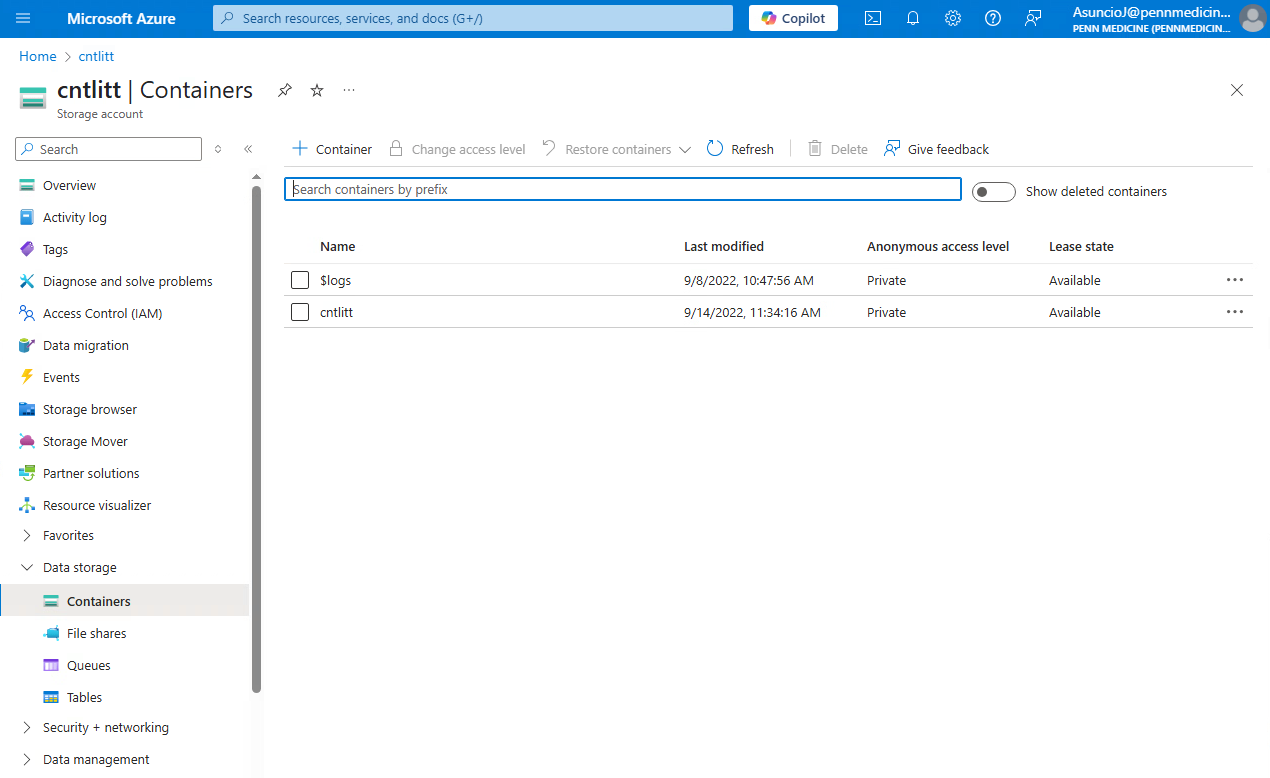

    4. Open the "cntlitt" container
      Azure cntlitt Containers list ($logs, cntlitt)

    5. Look for the HUPXXX.tar.gz tarball

    6. Once verified, delete the HUPXXX.tar.gz tarball from the /project/eeg_process/azure_archive/ready_for_archiving folder
