Processing for ieeg.org (natus2mef → validate → upload)¶

What this page tells you

Full ieeg.org processing commands for Intracranial, CCEPS, Gottfried, and Gold recordings: natus2mef in a screen, mefvalidate, redact PHI annotations, copy annotation and montage files to cnt-fs, delete original annotations, ieeg upload-directory to the right project, then build config folders. Notify Erin Conrad or Sarah afterward.

Now that you have set up your files and exported the data from Natus, you are now ready to process the eeg files and upload them to ieeg.org. There are 5 steps in this process:

Natus to mef conversion
Validate the mef
Redact annotations
1. Once you redact the PHI, copy both annotations files + montages to cnt-fs
2. Delete original annotations json file from mef
Upload to ieeg.org
Make config files

Below are the codes for each type of eeg file processing.
Replace XXX with the HUP ID in sublime text editor.

Intracranial_EEG¶

First, log into the VDI and enter cnt1 in Mobaxterm with this command: ssh cnt1

if the VDI ever logs you out, the server name is: connect.pmacs.upenn.edu
Natus to mef conversion
Make sure that the eeg file times do not overlap before you run this conversion. If they do overlap, the natus2mef conversion will fail. In this case, you need to split the datasets into 2 separate natusdir files (labeled D01 and D02), and then process each one separately. Adjust the names of the files in the code below accordingly. Instructions are here: Splitting Datasets (Splitting Datasets)

In cnt1: cd /project/eeg_process/programs/mef/natus-latest
scree
First make a new screen to allow the mef conversion to run for a few hours until it is complete:
screen -S HUPXXX_convert

Once you are in the new screen now run the code:
./natus2mef -c /mnt/cnt-fs/eeg_raw/ieeg_raw/HUPXXX/Intracranial_EEG/HUPXXX_natusDir.txt -m /mnt/cnt-fs/eeg_raw/ieeg_raw/HUPXXX/Intracranial_EEG/HUPXXX_channelMapping.txt -o /project/eeg_process/HUPXXX/HUPXXX_mef >/mnt/cnt-fs/eeg_raw/ieeg_raw/HUPXXX/Intracranial_EEG/HUPXXX_convert_log 2>&1
~~--no-annotation-filters~~

Hit control + a + d to exit the screen

To go back into the screen to check:
screen -ls to check all the screens available
screen -r XXXX (number of the screen)
control+a control+\ terminates a screen

Once the conversion has run, type exit to terminate the screen

In order to check that the conversion was successful, go to the HUPXXX_convert_log file in cnt-fs in ieeg_raw/HUPXXX. Right click on the convert log, select Notepad++, and scroll all the way down to the bottom. It should say “processing successful”. If the processing was not successful, you will see the error here in this file.

Mef Validate
In cnt1: cd /project/eeg_process/programs/ieeg/ieeg-latest

./mefvalidate /project/eeg_process/HUPXXX/HUPXXX_mef/*.mef | grep PASS
./mefvalidate /project/eeg_process/HUPXXX/HUPXXX_mef/*.mef | grep FAIL

Redact annotations
1. Run the redact annotations script
  1. If you accidentally delete an annotation that should have stayed in, or if you keep an annotation that needs to be deleted, do control + C to end the script, and then start over. Alternatively, you can wait until you finish the rest of the annotations and copy the file over to cnt-fs, then open the file and manually removed one that you missed.
2. Copy both annotations files + montages to cnt-fs when done
3. Delete original annotations file from mef (if it has PHI)

Anything next to the line "type" that has PHI (pronouns, names, initials of patient) you need to remove

In cnt1: cd /project/eeg_process/programs/mef/redact_annots

python redact_annots_python3.py /project/eeg_process/HUPXXX/HUPXXX_mef/annotations.iann.json /project/eeg_process/HUPXXX/HUPXXX_mef/annotations_edit.iann.json

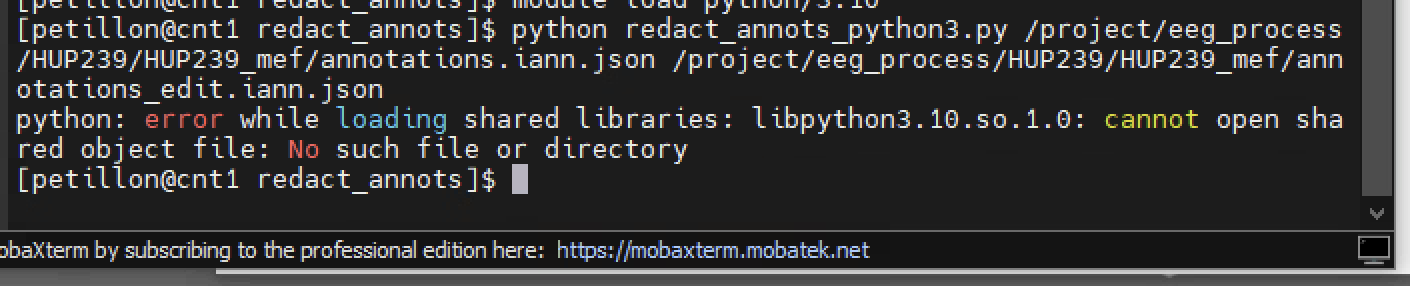

If getting error message below, run:
ssh cnt1
module load python/3.10

Once you redact the annotations (any with PHI), enter the mef file that you just created with:
cd /project/eeg_process/HUPXXX/HUPXXX_mef

Once you are here, copy over both annotations files and the montages, and then delete the original annotations file from the mef since we do not want to upload this to ieeg.org because it has PHI (annotations.iann.json):

cp -r annotations.iann.json /mnt/cnt-fs/eeg_raw/ieeg_raw/HUPXXX/Intracranial_EEG

cp -r annotations_edit.iann.json /mnt/cnt-fs/eeg_raw/ieeg_raw/HUPXXX/Intracranial_EEG

cp -r montages.imtg.json /mnt/cnt-fs/eeg_raw/ieeg_raw/HUPXXX/Intracranial_EEG

Delete original annotations file if it has PHI before uploading!!

only needed if you edited the original
rm -r annotations.iann.json
Upload to ieeg.org
In cnt1: cd /project/eeg_process/programs/ieeg/ieeg-latest

First make a new screen to allow the ieeg upload to run for a few hours until it is complete:
screen -S HUPXXX_ieeg_upload

Upload to ieeg.org using the code and instructions below:

./ieeg upload-directory -n 'Human_Data/Hospital of the University of Pennsylvania/HUP_Intracranial_Data/HUPXXX_phaseII' '/project/eeg_process/HUPXXX/HUPXXX_mef'
~~go into~~ ~~ieeg.org~~ ~~and open the dataset you uploaded-~~ ~~Don't Upload to HUP_SEEG ANYMORE~~
~~then open project you want to add it to and check off dataset you want to add to that projectnow dataset is in both projects~~
~~./ieeg upload-directory -n 'Human_Data/Hospital of the University of Pennsylvania/HUP_SEEG/HUPXXX_phaseII' '../../HUPXXX/HUPXXX_mef'~~

Hit control + a + d to exit the screen

To go back into the screen to check do:
screen -ls to check all the screens available
screen -r XXXX (number of the screen)

Once the upload is complete, type exit to terminate the screen

Make config files
1. Once you are done with your processing, in the eeg_raw/ieeg_raw/HUPXXX/Intracranial_EEG folder in cnt-fs, place the files below in a folder called config_intracranial. When you are done with all processing for this patient, this will be placed in a master config file which will be put in ieeg_metadata.
  1. Natusdir
  2. Data Collection
  3. Convert log
  4. annotations.iann.json
  5. annotations_edit.iann.json
  6. Montages
  7. channel mapping

CCEPS¶

First, log into the VDI and enter cnt1 in Mobaxterm with this command: ssh cnt1

if the VDI ever logs you out, the server name is: connect.pmacs.upenn.edu
Natus to mef conversion
In cnt1: cd /project/eeg_process/programs/mef/natus-latest

~~NO machine annotations:~~
./natus2mef -c /mnt/cnt-fs/eeg_raw/ieeg_raw/HUPXXX/Research/CCEPS/HUPXXX_CCEPS_natusDir.txt -m /mnt/cnt-fs/eeg_raw/ieeg_raw/HUPXXX/Research/CCEPS/HUPXXX_channelMapping.txt -o ../../HUPXXX/HUPXXX_CCEPS_mef >/mnt/cnt-fs/eeg_raw/ieeg_raw/HUPXXX/Research/CCEPS/HUPXXX_CCEPS_convert_log 2>&1

WITH machine annotations:
./natus2mef --no-annotation-filters -c /mnt/cnt-fs/eeg_raw/ieeg_raw/HUPXXX/Research/CCEPS/HUPXXX_CCEPS_natusDir.txt -m /mnt/cnt-fs/eeg_raw/ieeg_raw/HUPXXX/Research/CCEPS/HUPXXX_channelMapping.txt -o /project/eeg_process/HUPXXX/HUPXXX_CCEPS_mef >/mnt/cnt-fs/eeg_raw/ieeg_raw/HUPXXX/Research/CCEPS/HUPXXX_CCEPS_convert_log 2>&1

In order to check that the conversion was successful, go to the HUPXXX_CCEPS_convert_log file in cnt-fs in ieeg_raw/HUPXXX/Research/CCEPS. Right click on the convert log, select Notepad++, and scroll all the way down to the bottom. It should say “processing successful”. If the processing was not successful, you will see the error here in this file.

Mef Validate
In cnt1: cd /project/eeg_process/programs/ieeg/ieeg-latest

./mefvalidate /project/eeg_process/HUPXXX/HUPXXX_CCEPS_mef/*.mef | grep PASS
./mefvalidate /project/eeg_process/HUPXXX/HUPXXX_CCEPS_mef/*.mef | grep FAIL

Redact annotations
1. Run the redact annotations script
  1. If you accidentally delete an annotation that should have stayed in, or if you keep an annotation that needs to be deleted, do control + C to end the script, and then start over.
2. Copy both annotations files + montages to cnt-fs when done
3. Delete original annotations file from mef
4. Run the "edit_annots_cceps.py" script to de-identify "Annotator" field and check if any channels are missing
  Anything next to the line "type" that has PHI (pronouns, names, initials of patient, room number) you need to remove

In cnt1: cd /project/eeg_process/programs/mef/redact_annots

python redact_annots_python3.py /project/eeg_process/HUPXXX/HUPXXX_CCEPS_mef/annotations.iann.json /project/eeg_process/HUPXXX/HUPXXX_CCEPS_mef/annotations_edit.iann.json

Once you redact the annotations (any with PHI), enter the mef file that you just created with:
cd /project/eeg_process/HUPXXX/HUPXXX_CCEPS_mef

Once you are here, copy over both annotations files and the montages, and then delete the original annotations file from the mef since we do not want to upload this to ieeg.org because it has PHI (annotations.iann.json):

cp -r annotations.iann.json /mnt/cnt-fs/eeg_raw/ieeg_raw/HUPXXX/Research/CCEPS

cp -r annotations_edit.iann.json /mnt/cnt-fs/eeg_raw/ieeg_raw/HUPXXX/Research/CCEPS

cp -r montages.imtg.json /mnt/cnt-fs/eeg_raw/ieeg_raw/HUPXXX/Research/CCEPS

Delete original annotations file if it has PHI before uploading!!
rm -r annotations.iann.json

In cnt1: cd /project/eeg_process/programs/mef

python edit_annots_cceps.py /mnt/cnt-fs/eeg_raw/ieeg_raw/HUPXXX/Research/CCEPS/annotations_edit.iann.json /mnt/cnt-fs/eeg_raw/ieeg_raw/HUPXXX/Research/CCEPS/HUPXXX_channelMapping.txt

This script will remove any entries in the "Annotator" header in the annotations .json file and replace them with "null". In addition, this script will cross-check the "Closed relay to ...." annotations in the annotations .json file with the channel mapping file, and it will alert you if there are any missing channels from the channel mapping.

Upload to ieeg.org

In cnt1: cd /project/eeg_process/programs/ieeg/ieeg-latest

./ieeg upload-directory -n 'Human_Data/Hospital of the University of Pennsylvania/HUP_CCEPs/HUPXXX_CCEP' '/project/eeg_process/HUPXXX/HUPXXX_CCEPS_mef'

Make config files
1. Once you are done with your processing, in the eeg_raw/ieeg_raw/HUPXXX/Research/CCEPS folder in cnt-fs, place the files below in a folder called config_CCEPS. When you are done with all processing for this patient, this will be placed in a master config file which will be put in ieeg_metadata.
  1. Natusdir
  2. Data Collection
  3. Convert log
  4. annotations.iann.json
  5. annotations_edit.iann.json
  6. Montages
Let Erin Conrad know that the file is uploaded.

Gottfried¶

First, log into the VDI and enter cnt1 in Mobaxterm with this command: ssh cnt1

if the VDI ever logs you out, the server name is: connect.pmacs.upenn.edu
you will login with your pmacs username and password to login to the VDI
Natus to mef conversion
ssh cnt1

In cnt1: cd /project/eeg_process/programs/mef/natus-latest

./natus2mef -c /mnt/cnt-fs/eeg_raw/ieeg_raw/HUPXXX/Research/Gottfried/HUPXXX_Gottfried_natusDir.txt -m /mnt/cnt-fs/eeg_raw/ieeg_raw/HUPXXX/Research/Gottfried/HUPXXX_Gottfried_channelMapping.txt -o /project/eeg_process/HUPXXX/HUPXXX_Gottfried_mef >/mnt/cnt-fs/eeg_raw/ieeg_raw/HUPXXX/Research/Gottfried/HUPXXX_Gottfried_convert_log 2>&1

In order to check that the conversion was successful, go to the HUPXXX_Gottfried_convert_log file in cnt-fs in ieeg_raw/HUPXXX/Research/Gottfried. Right click on the convert log, select Notepad++, and scroll all the way down to the bottom. It should say “processing successful”. If the processing was not successful, you will see the error here in this file.

Work arounds: can try processing with only one RESP channel if the convert log is failing with both of them

Mef Validate

In cnt1: cd /project/eeg_process/programs/ieeg/ieeg-latest

./mefvalidate /project/eeg_process/HUPXXX/HUPXXX_Gottfried_mef/*.mef | grep PASS

this should show a bunch of lines with [PASS]; this means it worked
./mefvalidate /project/eeg_process/HUPXXX/HUPXXX_Gottfried_mef/*.mef | grep FAIL
there should be no lines if it worked
Redact annotations
1. Run the redact annotations script
  1. If you accidentally delete an annotation that should have stayed in, or if you keep an annotation that needs to be deleted, do control + C to end the script
2. Copy both annotations files + montages to cnt-fs when done
3. Delete original annotations file from mef

In cnt1: cd /project/eeg_process/programs/mef/redact_annots

python redact_annots_python3.py /project/eeg_process//HUPXXX/HUPXXX_Gottfried_mef/annotations.iann.json /project/eeg_process/HUPXXX/HUPXXX_Gottfried_mef/annotations_edit.iann.json

Anything next to the line "type" that has PHI (pronouns, names, initials of patient) you need to remove

Once you redact the annotations (any with PHI), enter the mef file that you just created with:
cd /project/eeg_process/HUPXXX/HUPXXX_Gottfried_mef

Once you are here, copy over both annotations files and the montages, and then delete the original annotations file from the mef since we do not want to upload this to ieeg.org because it has PHI (annotations.iann.json):

cp -r annotations.iann.json /mnt/cnt-fs/eeg_raw/ieeg_raw/HUPXXX/Research/Gottfried

cp -r annotations_edit.iann.json /mnt/cnt-fs/eeg_raw/ieeg_raw/HUPXXX/Research/Gottfried

this file wont exist if you didnt delete any annotations

cp -r montages.imtg.json /mnt/cnt-fs/eeg_raw/ieeg_raw/HUPXXX/Research/Gottfried

Delete original annotations file ONLY if it has PHI before uploading!!
rm -r annotations.iann.json

Upload to ieeg.org

In cnt1: cd /project/eeg_process/programs/ieeg/ieeg-latest

./ieeg upload-directory -n 'Human_Data/Hospital of the University of Pennsylvania/Yarko_the_Great/HUPXXX_Gottfried_Odor_Features' '/project/eeg_process/HUPXXX/HUPXXX_Gottfried_mef'

Make config files
1. Once you are done with your processing, in the eeg_raw/ieeg_raw/HUPXXX/Research/Gottfried folder in cnt-fs, place the files below in a folder called config_Gottfried. When you are done with all processing for this patient, this will be placed in a master config file which will be put in ieeg_metadata.
  1. Natusdir
  2. Data Collection
  3. Convert log
  4. annotations.iann.json
  5. annotations_edit.iann.json
  6. Montages
Let Sarah from the Gottfried Lab know that the file is uploaded.

Gold Lab Audio Task (need to update with new scripts)¶

First, log into the VDI and enter cnt1 in Mobaxterm with this command: ssh cnt1

if the VDI ever logs you out, the server name is: connect.pmacs.upenn.edu
Natus to mef conversion
ssh cnt1

In cnt1: cd /project/eeg_process/programs/mef/natus-latest

./natus2mef -c /mnt/cnt-fs/eeg_raw/ieeg_raw/HUPXXX/Research/Gold_Audio/HUPXXX_Gold_natusDir.txt -m /mnt/cnt-fs/eeg_raw/ieeg_raw/HUPXXX/Research/Gold_Audio/HUPXXX_Gold_channelMapping.txt -o /project/eeg_process/HUPXXX/HUPXXX_Gold_mef >/mnt/cnt-fs/eeg_raw/ieeg_raw/HUPXXX/Research/Gold_Audio/HUPXXX_Gold_convert_log 2>&1

In order to check that the conversion was successful, go to the HUPXXX_Gold_convert_log file in cnt-fs in ieeg_raw/HUPXXX/Research/Gold_Audio. Right click on the convert log, select Notepad++, and scroll all the way down to the bottom. It should say “processing successful”. If the processing was not successful, you will see the error here in this file.

Mef Validate

In cnt1: cd /project/eeg_process/programs/ieeg/ieeg-latest

./mefvalidate /project/eeg_process/HUPXXX/HUPXXX_Gold_mef/*.mef | grep PASS
./mefvalidate /project/eeg_process/HUPXXX/HUPXXX_Gold_mef/*.mef | grep FAIL

Redact annotations
1. Run the redact annotations script
  1. If you accidentally delete an annotation that should have stayed in, or if you keep an annotation that needs to be deleted, do control + C to end the script, and then start over.
2. Copy both annotations files + montages to cnt-fs when done
3. Delete original annotations file from mef
4. Usually the Gold Task does not have any annotations that need to be redacted. In this case, you would just copy over the original annotations file and the montages to cnt-fs, and DO NOT DELETE the original annotations file from the mef.

In cnt1: cd /project/eeg_process/programs/mef/redact_annots

python redact_annots_python3.py /project/eeg_process/HUPXXX/HUPXXX_Gold_mef/annotations.iann.json /project/eeg_process/HUPXXX/HUPXXX_Gold_mef/annotations_edit.iann.json

Once you redact the annotations (any with PHI), enter the mef file that you just created with:
cd /project/eeg_process/HUPXXX/HUPXXX_Gold_mef

Once you are here, copy over both annotations files and the montages, and then delete the original annotations file from the mef since we do not want to upload this to ieeg.org because it has PHI (annotations.iann.json):

cp -r annotations.iann.json /mnt/cnt-fs/eeg_raw/ieeg_raw/HUPXXX/Research/Gold_Audio

cp -r annotations_edit.iann.json /mnt/cnt-fs/eeg_raw/ieeg_raw/HUPXXX/Research/Gold_Audio
(only if you redacted annotations)

cp -r montages.imtg.json /mnt/cnt-fs/eeg_raw/ieeg_raw/HUPXXX/Research/Gold_Audio

Delete original annotations file if it has PHI before uploading!!

only if there is an edited vs non-edited (usually not needed for Gold testing)
rm -r annotations.iann.json
Upload to ieeg.org

In cnt1: cd /project/eeg_process/programs/ieeg/ieeg-latest

./ieeg upload-directory -n 'Human_Data/Hospital of the University of Pennsylvania/Gold_Lab_Audio/HUPXXX_Audio_Task' '/project/eeg_process/HUPXXX/HUPXXX_Gold_mef'

Make config files
1. Once you are done with your processing, in the eeg_raw/ieeg_raw/HUPXXX/Research/Gold_Audio folder in cnt-fs, place the files below in a folder called config_Gold. When you are done with all processing for this patient, this will be placed in a master config file which will be put in ieeg_metadata.
  1. Natusdir
  2. Data Collection
  3. Convert log
  4. annotations.iann.json
  5. annotations_edit.iann.json (if present)
  6. Montages
